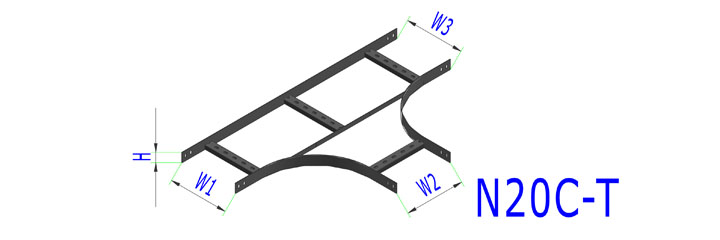

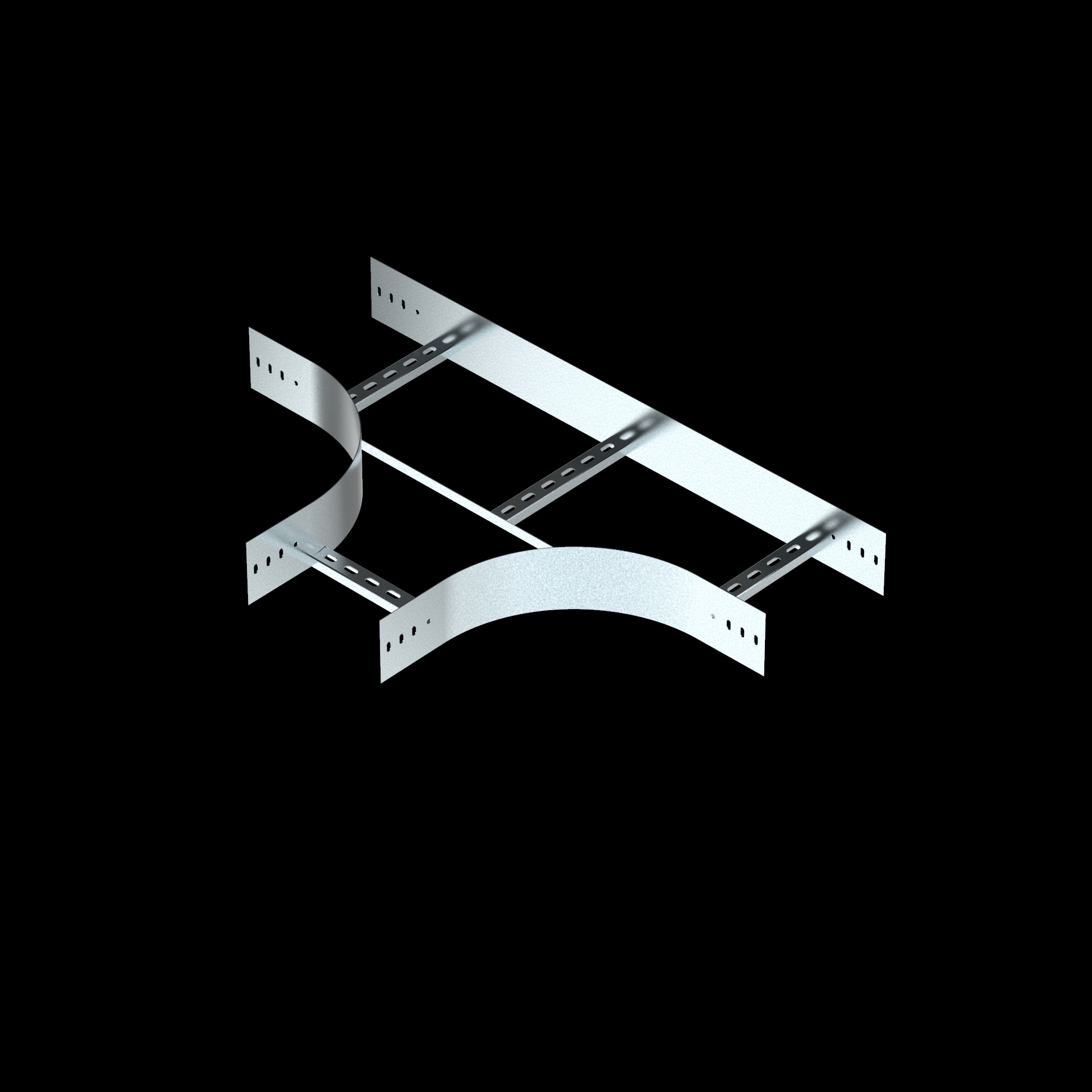

N12B/16A/20B/20C-T Tee
N12B/16A/20B/20C-T G
Material & Finish
Pre-Galvanized / PG / GI – for indoor use to AS1397
Other Material & Finish available:
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Stainless Steel SS304 / SS316
Powder Coated – for indoor use to JG/T3045
Aluminum to AS/NZS1866
Fiberglass Reinforced Plastics / FRP /GRP
Fire Rated to AS3013:2005
Electrolytic Polishing – for Stainless Steel use
Mill / Mild /Plain Steel to ISO 4995

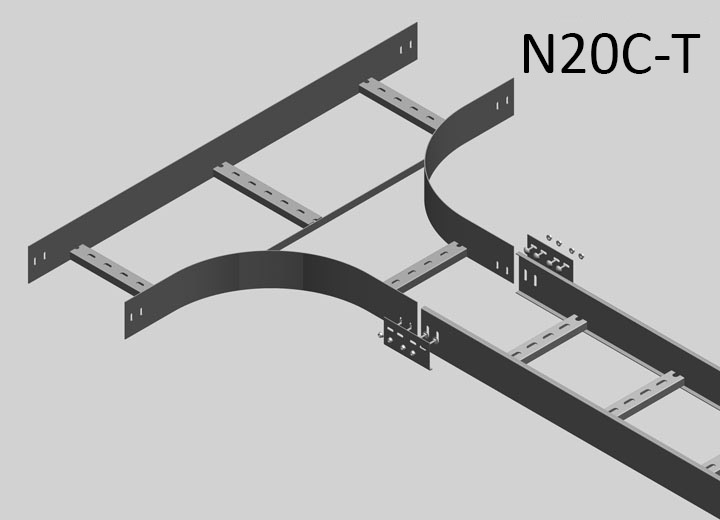

N12B/16A/20B/20C-T Installation Guide
Ordering Details
| OrderingCode | W(mm) | H(mm) | |
| 300Radius | N12B-T1503G | 150 | 65 |
| N16A-T1503G | 93 | ||
| N20B-T1503G | 130 | ||
| N20C-T1503G | 150 | ||
| N12B-T3003G | 300 | 65 | |
| N16A-T3003G | 93 | ||
| N20B-T3003G | 130 | ||
| N20C-T3003G | 150 | ||
| N12B-T4503G | 450 | 65 | |
| N16A-T4503G | 93 | ||
| N20B-T4503G | 130 | ||
| N20C-T4503G | 150 | ||
| N12B-T6003G | 600 | 65 | |
| N16A-T6003G | 93 | ||
| N20B-T6003G | 130 | ||
| N20C-T6003G | 150 | ||
| 450Radius | N12B-T1504G | 150 | 65 |
| N16A-T1504G | 93 | ||
| N20B-T1504G | 130 | ||
| N20C-T1504G | 150 | ||
| N12B-T3004G | 300 | 65 | |
| N16A-T3004G | 93 | ||
| N20B-T3004G | 130 | ||
| N20C-T3004G | 150 | ||
| N12B-T4504G | 450 | 65 | |
| N16A-T4504G | 93 | ||
| N20B-T4504G | 130 | ||
| N20C-T4504G | 150 | ||
| N12B-T6004G | 600 | 65 | |
| N16A-T6004G | 93 | ||
| N20B-T6004G | 130 | ||
| N20C-T6004G | 150 | ||
| 600Radius | N12B-T1506G | 150 | 65 |
| N16A-T1506G | 93 | ||
| N20B-T1506G | 130 | ||
| N20C-T1506G | 150 | ||
| N12B-T3006G | 300 | 65 | |
| N16A-T3006G | 93 | ||
| N20B-T3006G | 130 | ||
| N20C-T3006G | 150 | ||
| N12B-T4506G | 450 | 65 | |
| N16A-T4506G | 93 | ||
| N20B-T4506G | 130 | ||
| N20C-T4506G | 150 | ||
| N12B-T6006G | 600 | 65 | |
| N16A-T6006G | 93 | ||
| N20B-T6006G | 130 | ||
| N20C-T6006G | 150 |
N12B/16A/20B/20C-TH
Material & Finish
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Other Material & Finish available:
Pre-Galvanized / PG / GI – for indoor use to AS1397
Stainless Steel SS304 / SS316
Powder Coated – for indoor use to JG/T3045
Aluminum to AS/NZS1866
Fiberglass Reinforced Plastics / FRP /GRP
Fire Rated to AS3013:2005
Electrolytic Polishing – for Stainless Steel use
Mill / Mild /Plain Steel to ISO 4995
N12B/16A/20B/20C-TInstallation Guide
Ordering Details
| OrderingCode | W(mm) | H(mm) | |
| 300Radius | N12B-T1503H | 150 | 65 |
| N16A-T1503H | 93 | ||
| N20B-T1503H | 130 | ||
| N20C-T1503H | 150 | ||
| N12B-T3003H | 300 | 65 | |
| N16A-T3003H | 93 | ||
| N20B-T3003H | 130 | ||
| N20C-T3003H | 150 | ||
| N12B-T4503H | 450 | 65 | |
| N16A-T4503H | 93 | ||
| N20B-T4503H | 130 | ||
| N20C-T4503H | 150 | ||
| N12B-T6003H | 600 | 65 | |
| N16A-T6003H | 93 | ||
| N20B-T6003H | 130 | ||
| N20C-T6003H | 150 | ||
| 450Radius | N12B-T1504H | 150 | 65 |
| N16A-T1504H | 93 | ||
| N20B-T1504H | 130 | ||
| N20C-T1504H | 150 | ||
| N12B-T3004H | 300 | 65 | |
| N16A-T3004H | 93 | ||
| N20B-T3004H | 130 | ||
| N20C-T3004H | 150 | ||
| N12B-T4504H | 450 | 65 | |
| N16A-T4504H | 93 | ||
| N20B-T4504H | 130 | ||
| N20C-T4504H | 150 | ||
| N12B-T6004H | 600 | 65 | |
| N16A-T6004H | 93 | ||
| N20B-T6004H | 130 | ||
| N20C-T6004H | 150 | ||
| 600Radius | N12B-T1506H | 150 | 65 |
| N16A-T1506H | 93 | ||
| N20B-T1506H | 130 | ||
| N20C-T1506H | 150 | ||
| N12B-T3006H | 300 | 65 | |
| N16A-T3006H | 93 | ||
| N20B-T3006H | 130 | ||
| N20C-T3006H | 150 | ||
| N12B-T4506H | 450 | 65 | |
| N16A-T4506H | 93 | ||
| N20B-T4506H | 130 | ||
| N20C-T4506H | 150 | ||
| N12B-T6006H | 600 | 65 | |
| N16A-T6006H | 93 | ||
| N20B-T6006H | 130 | ||
| N20C-T6006H | 150 |
N12B/16A/20B/20C-T S
Material & Finish
Stainless Steel SS304 / SS316
Other Material & Finish available:
Pre-Galvanized / PG / GI – for indoor use to AS1397
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Powder Coated – for indoor use to JG/T3045
Aluminum to AS/NZS1866
Fiberglass Reinforced Plastics
Fire Rated to AS3013:2005
Electrolytic Polishing – for Stainless Steel use
Mill / Mild /Plain Steel to ISO 4995
N12B/16A/20B/20C-T Installation Guide
Ordering Details
| OrderingCode | W(mm) | H(mm) | |
| 300Radius | N12B-T1503S | 150 | 65 |
| N16A-T1503S | 93 | ||
| N20B-T1503S | 130 | ||
| N20C-T1503S | 150 | ||
| N12B-T3003S | 300 | 65 | |
| N16A-T3003S | 93 | ||
| N20B-T3003S | 130 | ||
| N20C-T3003S | 150 | ||
| N12B-T4503S | 450 | 65 | |
| N16A-T4503S | 93 | ||
| N20B-T4503S | 130 | ||
| N20C-T4503S | 150 | ||
| N12B-T6003S | 600 | 65 | |
| N16A-T6003S | 93 | ||
| N20B-T6003S | 130 | ||
| N20C-T6003S | 150 | ||
| 450Radius | N12B-T1504S | 150 | 65 |
| N16A-T1504S | 93 | ||
| N20B-T1504S | 130 | ||
| N20C-T1504S | 150 | ||
| N12B-T3004S | 300 | 65 | |
| N16A-T3004S | 93 | ||
| N20B-T3004S | 130 | ||
| N20C-T3004S | 150 | ||
| N12B-T4504S | 450 | 65 | |
| N16A-T4504S | 93 | ||
| N20B-T4504S | 130 | ||
| N20C-T4504S | 150 | ||
| N12B-T6004S | 600 | 65 | |
| N16A-T6004S | 93 | ||
| N20B-T6004S | 130 | ||
| N20C-T6004S | 150 | ||
| 600Radius | N12B-T1506S | 150 | 65 |
| N16A-T1506S | 93 | ||
| N20B-T1506S | 130 | ||
| N20C-T1506S | 150 | ||
| N12B-T3006S | 300 | 65 | |
| N16A-T3006S | 93 | ||
| N20B-T3006S | 130 | ||
| N20C-T3006S | 150 | ||
| N12B-T4506S | 450 | 65 | |
| N16A-T4506S | 93 | ||
| N20B-T4506S | 130 | ||
| N20C-T4506S | 150 | ||
| N12B-T6006S | 600 | 65 | |
| N16A-T6006S | 93 | ||
| N20B-T6006S | 130 | ||
| N20C-T6006S | 150 |
N12B/16A/20B/20C-T P
Material & Finish
Powder Coated – for indoor use to JG/T3045
Other Material & Finish available:
Pre-Galvanized / PG / GI – for indoor use to AS1397
Stainless Steel SS304 / SS316
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Aluminum to AS/NZS1866
Fiberglass Reinforced Plastics
Fire Rated to AS3013:2005
Electrolytic Polishing – for Stainless Steel use
Mill / Mild /Plain Steel to ISO 4995
N12B/16A/20B/20C-T Installation Guide
Ordering Details
| OrderingCode | W(mm) | H(mm) | |
| 300Radius | N12B-T1503P | 150 | 65 |
| N16A-T1503P | 93 | ||
| N20B-T1503P | 130 | ||
| N20C-T1503P | 150 | ||
| N12B-T3003P | 300 | 65 | |
| N16A-T3003P | 93 | ||
| N20B-T3003P | 130 | ||
| N20C-T3003P | 150 | ||
| N12B-T4503P | 450 | 65 | |
| N16A-T4503P | 93 | ||
| N20B-T4503P | 130 | ||
| N20C-T4503P | 150 | ||
| N12B-T6003P | 600 | 65 | |
| N16A-T6003P | 93 | ||
| N20B-T6003P | 130 | ||
| N20C-T6003P | 150 | ||
| 450Radius | N12B-T1504P | 150 | 65 |
| N16A-T1504P | 93 | ||
| N20B-T1504P | 130 | ||
| N20C-T1504P | 150 | ||
| N12B-T3004P | 300 | 65 | |
| N16A-T3004P | 93 | ||
| N20B-T3004P | 130 | ||
| N20C-T3004P | 150 | ||
| N12B-T4504P | 450 | 65 | |
| N16A-T4504P | 93 | ||
| N20B-T4504P | 130 | ||
| N20C-T4504P | 150 | ||
| N12B-T6004P | 600 | 65 | |
| N16A-T6004P | 93 | ||
| N20B-T6004P | 130 | ||
| N20C-T6004P | 150 | ||
| 600Radius | N12B-T1506P | 150 | 65 |
| N16A-T1506P | 93 | ||
| N20B-T1506P | 130 | ||
| N20C-T1506P | 150 | ||
| N12B-T3006P | 300 | 65 | |
| N16A-T3006P | 93 | ||
| N20B-T3006P | 130 | ||
| N20C-T3006P | 150 | ||
| N12B-T4506P | 450 | 65 | |
| N16A-T4506P | 93 | ||
| N20B-T4506P | 130 | ||
| N20C-T4506P | 150 | ||
| N12B-T6006P | 600 | 65 | |
| N16A-T6006P | 93 | ||
| N20B-T6006P | 130 | ||
| N20C-T6006P | 150 |
N12B/16A/20B/20C-T A
Material & Finish
Aluminum to AS/NZS1866
Other Material & Finish available:
Pre-Galvanized / PG / GI – for indoor use to AS1397
Stainless Steel SS304 / SS316
Powder Coated – for indoor use to JG/T3045
Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461
Fiberglass Reinforced Plastics
Fire Rated to AS3013:2005
Electrolytic Polishing – for Stainless Steel use
Mill / Mild /Plain Steel to ISO 4995
N12B/16A/20B/20C-T Installation Guide
Ordering Details
| OrderingCode | W(mm) | H(mm) | |
| 300Radius | N12B-T1503A | 150 | 65 |
| N16A-T1503A | 93 | ||
| N20B-T1503A | 130 | ||
| N20C-T1503A | 150 | ||
| N12B-T3003A | 300 | 65 | |
| N16A-T3003A | 93 | ||
| N20B-T3003A | 130 | ||
| N20C-T3003A | 150 | ||
| N12B-T4503A | 450 | 65 | |
| N16A-T4503A | 93 | ||
| N20B-T4503A | 130 | ||
| N20C-T4503A | 150 | ||
| N12B-T6003A | 600 | 65 | |
| N16A-T6003A | 93 | ||
| N20B-T6003A | 130 | ||
| N20C-T6003A | 150 | ||
| 450Radius | N12B-T1504A | 150 | 65 |
| N16A-T1504A | 93 | ||
| N20B-T1504A | 130 | ||
| N20C-T1504A | 150 | ||
| N12B-T3004A | 300 | 65 | |
| N16A-T3004A | 93 | ||
| N20B-T3004A | 130 | ||
| N20C-T3004A | 150 | ||
| N12B-T4504A | 450 | 65 | |
| N16A-T4504A | 93 | ||
| N20B-T4504A | 130 | ||
| N20C-T4504A | 150 | ||
| N12B-T6004A | 600 | 65 | |
| N16A-T6004A | 93 | ||
| N20B-T6004A | 130 | ||
| N20C-T6004A | 150 | ||
| 600Radius | N12B-T1506A | 150 | 65 |
| N16A-T1506A | 93 | ||
| N20B-T1506A | 130 | ||
| N20C-T1506A | 150 | ||
| N12B-T3006A | 300 | 65 | |
| N16A-T3006A | 93 | ||
| N20B-T3006A | 130 | ||
| N20C-T3006A | 150 | ||
| N12B-T4506A | 450 | 65 | |
| N16A-T4506A | 93 | ||
| N20B-T4506A | 130 | ||
| N20C-T4506A | 150 | ||
| N12B-T6006A | 600 | 65 | |
| N16A-T6006A | 93 | ||
| N20B-T6006A | 130 | ||
| N20C-T6006A | 150 |
